FEATURES
- Used in open field working for the superficial ploughing for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains
- It can be used in light and medium soil
- High quality boron steel disc with 48 – 52 HRC hardness
- Tillage depth of the harrow is 127 – 178 mm
- Easily transportable – as it gets easily attached and mounted.

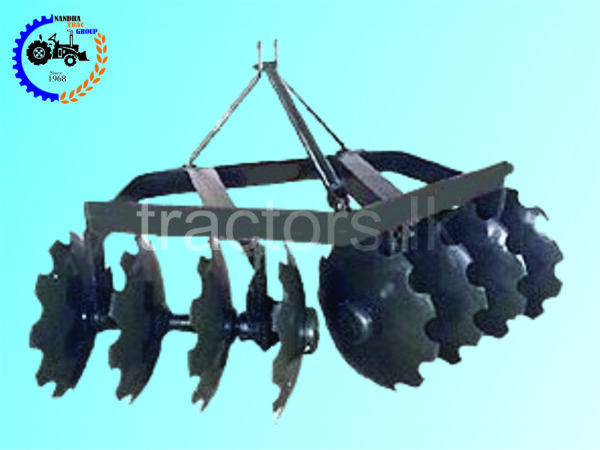

SPECIFICATIONS – SQUARE FRAME
| Frame | 95mm x 95mm x 5mm |
| No. of Discs | 8 |
| Type of Disc | Notched Discs |
| Disc Diameter | 22” |
| Cutting Width (mm Approx.) | 994 |
| Distance Between Discs | 228 mm |
| Weight | 340kgs |
| Tractor Power ( Hp) | 45 & Above |

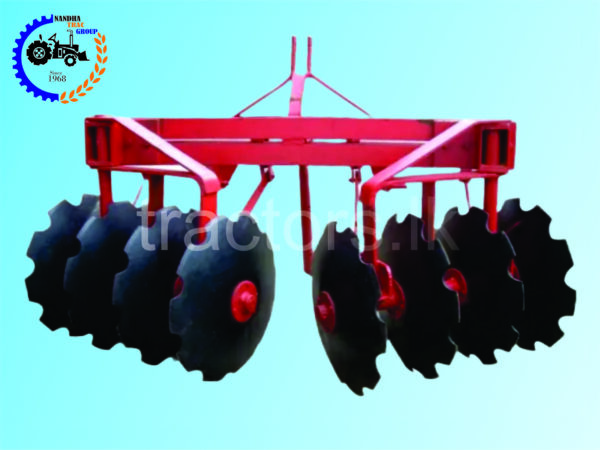

SPECIFICATIONS – PENTAGON FRAME
| Main Frame MS Flat | 100mm x 12mm |
| MS Angle 100mm x 100mm x 8mm | |
| No. of Discs | 8 |
| Disc Diameter | 22″ |
| Overall Length/Width/ Height | 37.3″/ 70.5″/ 48.5″ |
| Weight | 210kgs |
| Bearing | Special Casted Bush Bearing 4 Sets |
| Tractor Power ( Hp) | 45 & Above |
