FEATURES

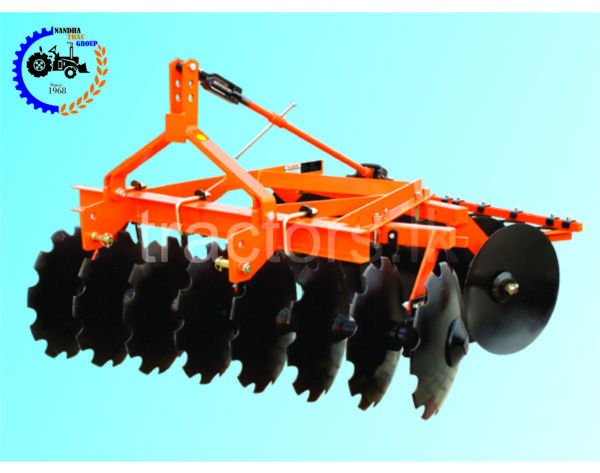

- Used in open field working for the superficial ploughing for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
- It can be used in light and medium soil.
- High quality boron steel disc with 48 – 52 HRC hardness.
- Tillage depth of the harrow is 127 – 178 mm.
- Easily transportable – as it gets easily attached and mounted.
- Available in With Wheels & Without wheels
SPECIFICATIONS
| Brand | AGROLUK |
| Model | AL-16 |
| Country of Origin | Turkey |
| Frame | 75×10 Angle Frame With 100×50 Front Channel |
| Gang Bolt/Axle(mm) | 28 (solid sq.rod) |
| No. of Discs | 16 |
| Type of Disc | Notched Discs & Plain Discs |
| Disc Diameter | 22” |
| Cutting Width | 1852 mm Approx. |
| Distance Between Discs | 228 mm |
| Bearing Hubs | 6 |
| Tyre Size | 10.0/75 – 15.3 & 13.0/55-16(14PR) |
| Weight | 650kg |
| Tractor Power (Hp) | 50-60 |
