TECHNICAL SPECIFICATIONS
GENERAL

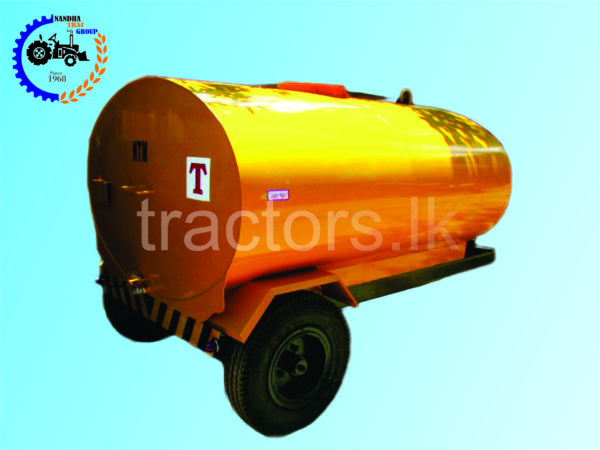

Two wheel trailer Bowser With 800 gallon(3600 Ltrs) capacity, Elliptical Steel Tank suitably constructed and rigidly mounted with proper Attachments for towing by four wheel tractor. Available in 1000 galoon(4000 Ltrs) as well.
TANK
Capacity of 800 gallons made of 1/8 steel plate welded with Two Compartments to restrict movement of liquid when being towed. There is a manhole with a breather pipe on top of the tank and the Lid of 18” diameter. A drain tap is provided. The tank is sprayed inside with two coats of Anticorrosive Paint. 2” gate valve will be Provided.
TRAILER AXLE CHASSIS & TYRES
The axle 2.25” Thickness which exist 30209, 32211 heavy duty bearings and 5 stud hub,
chassis and Tyres capable of bearing this load with an adequate margin of safety.
TOWING ATTACHMENT
The draw-bar with a replaceable Towing Eye for any model of 4 Wheel Tractor Hook.
LIGHT ETC.
Rear mounted Signal and Tail Lamps with number Plate, Lamps with a “T” Plate in conformity with the motor Traffic Etc.
COLOUR
Golden yellow or any other colour desired by you.
RIMS & TYRES
Lock Type Rims, 750 X 16, 14 ply Kelani / Ceat Tyres (Whichever available in the market)
OTHER SPECIFICATIONS
| 800 Galoons | 1000 Galoons | |
| Country of Origin | Locally Built | |
| Length of the Bowser | 8’ | 10’ |
| Length of the Bowser with Eye Bar | 13’ 6” | 15’ 6” |
| Width of the Bowser | 5’ 6” | |
| Height of the Bowser | 3’ 6” | 4’ 6” |
| Sheet Used | 1/8 MS Sheet | |
| Tow Eye | 1” MS Plate | |
| Tow Bar | 6 mm MS Sheet | |
| Main Chassis | 6 x 3 x ¼ U Channel | |
| Weight | 740 Kg | 860 Kg |
| Paint | Three Coats Of Anti Corrosive Paint in to inside & to out side. Then One Coat Of Desired Colour. | |
