FEATURES

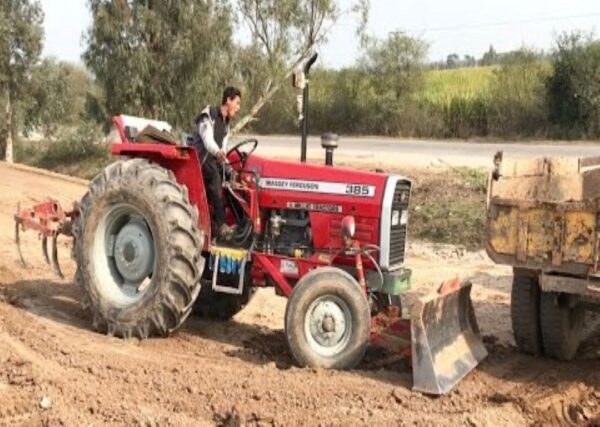

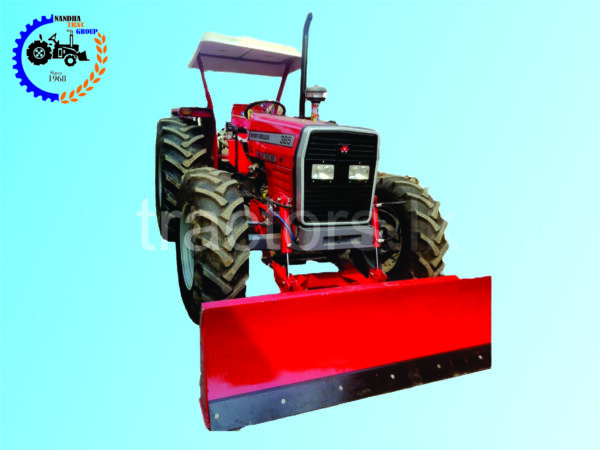

- The Power dozers are designed and built to match the performance of tractors
- They are operated hydraulically by single or twin double acting rams
- The points of attachment of the dozer to the tractor are reduced to an absolute minimum and the mounting brackets, once fitted, can be left in position enabling the sub-frame and blade to be quickly removed and attached
- The blade is fitted with a reversible and replaceable cutting edge of the high carbon steel
SPECIFICATION
| Power dozer to fit | 45 Hp & Above Tractors |
| Blade | Model AG- 08/1 =6’ x 22”- (Single ram) |
| Model AG- 08/2 =6.5’ x 30”-(Twin ram) | |
| Cutting Edge | 152mm (6”) x 12.7 mm (1/2”) section high carbon alloy steel reversible and replaceable |
| Hydraulic Ram | Heavy duty, double acting |
| Control Valve | Open centre double acting spool valve |
| Blade Movement | Maximum lift 533 mm (21”),Maximum depth below ground 102 mm (4”) |
